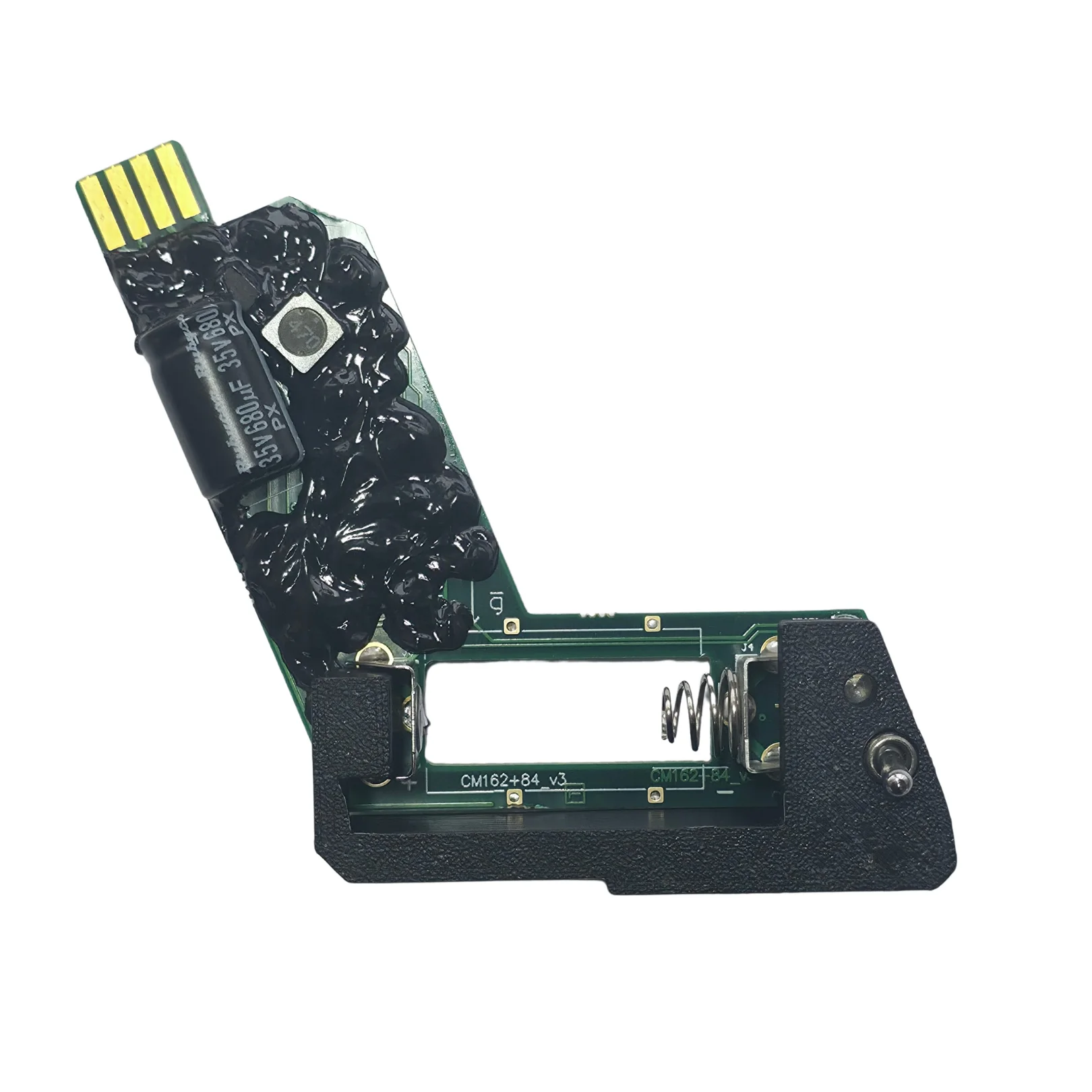

Bluetooth Electronic Board — CM162EI / CM84E

← Back to Shop

Bluetooth Electronic Board — CM162EI / CM84E

CHF 350.00

More control. More insight. A new way to train.

The Bluetooth Electronic Board takes pistol electronics to the next level, combining reliability, connectivity, and advanced training-dedicated features. Connect directly to the Morini Training App via Bluetooth to access specialized training modes, analyze your performance, and monitor your movements during every session.

Compatible with

CM 162 EI
CM 162EI

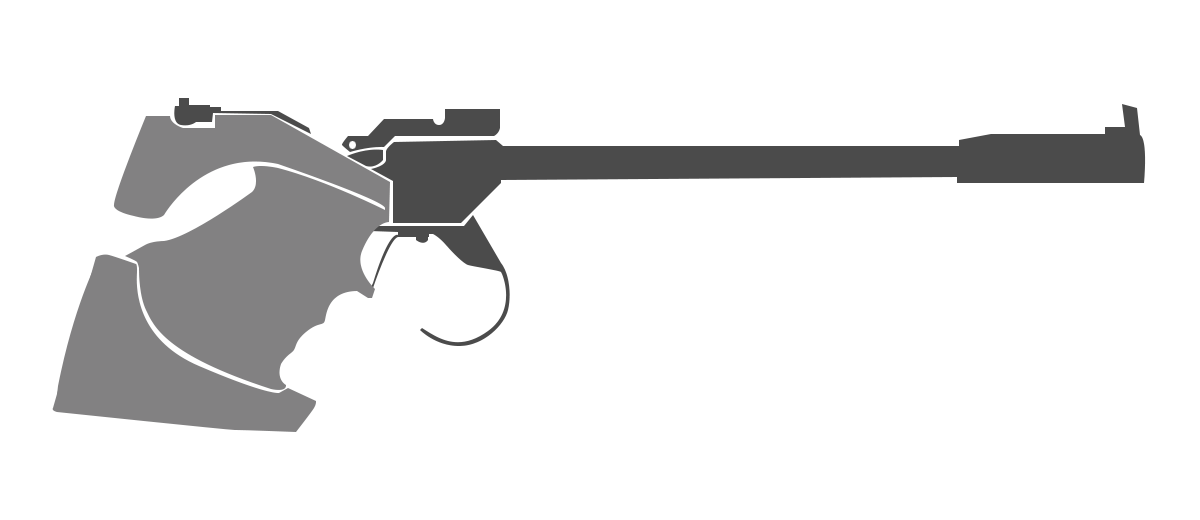

CM 84 E
CM 84E

Shipped from Switzerland. Orders delivered outside Switzerland may be subject to import duties and local taxes, collected by the carrier or customs upon import.

The Bluetooth Electronic Board takes pistol electronics to the next level, combining reliability, connectivity, and advanced training-dedicated features.

Thanks to the Bluetooth connection, the pistol communicates directly with the Morini Training App, allowing the shooter to access specialized training modes, analyze performance, and monitor movements during every session.

The connection with the App also enables management of the main electronic settings, keeps the firmware up to date, and provides immediate information on system status.

Bluetooth Connection

Connect the pistol directly to your smartphone via Bluetooth. Communication with the App lets you access all electronic board functions quickly and easily, with no wired connections required.

Adjustable Reaction Time

Customize the pistol’s electronic response by adjusting the Reaction Time to suit your preferences. The new electronics allow extremely precise adjustment, with values ranging from 0.1 ms to 1.6 ms.

A more personalized response to adapt the pistol’s behavior to the shooter’s needs.

Automatic Firmware Update

The board can be kept up to date directly through the App. When a new firmware version is detected, the user is guided through the update process.

During the update, the LED remains lit in red. Once the installation is complete, the board automatically performs an initial functional check.

Self-Diagnostic System

The integrated diagnostics help identify any pistol anomalies more quickly. At startup, the board automatically performs a system functional check.

Under normal conditions:
3 red blinks + 2 blue blinks confirm the board is functioning correctly.

If an anomaly is present, a dedicated light sequence identifies the component that needs attention.

Error Codes (fast blink)

  • 1 Blink: Trigger contacts open / Second stage trigger weight too low
  • 2 Blinks: Solenoid malfunction
  • 3 Blinks: Electronic board malfunction

Battery Status (slow blink)

  • 3 blinks: 75–100%
  • 2 blinks: 25–50%
  • 1 blink: 0–25%

Immediate battery check before training or competition.

Smart LED System

The integrated LED system communicates the electronic board’s status simply and immediately. From startup to Bluetooth connection, through firmware updates and diagnostics, every phase is accompanied by a dedicated visual signal.

Key Features

  • Bluetooth connectivity
  • APP integration
  • Adjustable Reaction Time 0.1–1.6 ms
  • Integrated firmware update
  • Automatic functional check
  • Integrated error diagnostics
  • Battery level indication
  • LED status notifications
  • Designed for sport shooting applications

Installation Videos

▶ Quick Installation Guide — CM 162EI
▶ Quick Installation Guide — CM 84E

Powered by a CR2 3V battery (not included).
